Silver RTS Stainless Steel 201 304 Pipe Fittings Hex Nipple Hose Nipple for Domestic

Name: Silver RTS Stainless Steel 201 304 Pipe Fittings Hex Nipple Hose Nipple for Domestic
Brand: JUFENG
Price: 0.50 USD

Quality Silver RTS Stainless Steel 201 304 Pipe Fittings Hex Nipple Hose Nipple for Domestic wholesale

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : JUFENG

Technics : Forged

Connection : Male

Shape : Equal

Head Code : Hexagon/Round

Product name : hexagon Male hose nipple pipe fitting

Material : stainless steel 201 304

Application : Beverage,beer,water treatment,domestic,pharmacy,etc

Color : Silver

Size : 1/4"-4.0"

Certification : ISO 9001

MOQ : 50 Pcs

Packaging Details : carton

Price : $0.50 - $16.34/pieces

Contact Now

Product Description

Silver RTS Stainless Steel 201 304 Pipe Fittings Hex Nipple Hose Nipple for Domestic

Specification

item	value
Customized support	OEM, ODM
Place of Origin	China
	Zhejiang
Brand Name	JUFENG
Technics	Forged
Connection	Male
Shape	Equal
Head Code	Hexagon/Round
Product name	hexagon Male hose nipple pipe fitting
Material	stainless steel 201 304
Application	Beverage,beer,water treatment,domestic,pharmacy,etc
Color	Silver
Size	1/4"-4.0"
Certification	ISO 9001
MOQ	50 Pcs

nominal diameter	DIM(ZG)	Outer diameter of external thread	Inner diameter of internal thread
DN6	1/8	10mm	9mm
DN8	1/4	13mm	11mm
DN10	3/8	16mm	14mm
DN15	1/2	20mm	19mm
DN20	3/4	26mm	24mm
DN25	1''	32mm	30mm
DN32	1 1/4	41mm	39mm
DN40	1 1/2	47mm	45mm
DN50	2''	59mm	57mm
DN65	2 1/2	75mm	71mm
DN80	3''	88mm	84mm
DN100	4''	113mm	109mm

about material

stainless steel 201 is cheap but easy to rust
stainless steel 304 is a general stainless steel material, not easy to rust

stainless steel 316 is resistant to strong acid and high temperature ,so it is a better stainless steel material. However,the price is more expensive.

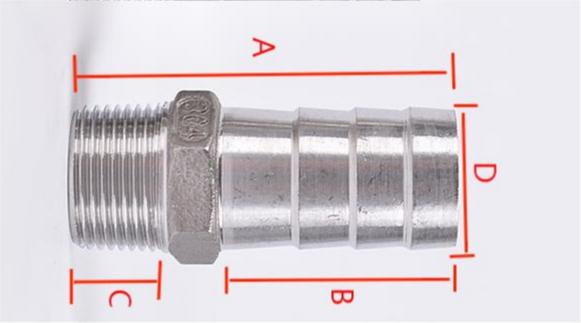

The following dimensions are for reference only, there will be error in millimeters
specification	thread	D(mm)	A（mm）	C(mm)	B(mm)
DN6*6	DN6=10 mm	6	35	9	19
DN6*8	DN6	8	37	9	20
DN6*10	DN6	10	41	9	24
DN8*6	DN8=13mm	6	40	12	20
DN8*8	DN8	8	42	11	23
DN8*10	DN8	10	47	12	27
DN8*12	DN8	12	45	11	26
DN10*6	DN10=16mm	6	40	13	19
DN10*8	DN10	8	43	12	23
DN10*10	DN10	10	49	13	28
DN10*12	DN10	12	49	12	29
DN10*15	DN10	15	51	14	30
DN15*6	DN15=20mm	6	43	15	29
DN15*8	DN15	8	51	15	28
DN15*10	DN15	l0	55	15	30
DN15*12	DN15	12	54	16	30
DN15*15	DN15	15	58	15	34
DN15*19	DN15	19	59	14	35
DN20*10	DN20=25mm	l0	60	15	35
DN20*12	DN20	12	62	15	35
DN20*15	DN20	15	62	16	36
DN20*20	DN20	20	64	17	38
DN20*25	DN20	25	68	15	41
DN25*15	DN25=33mm	15	60	18	30
DN25*20	DN25	20	68	18	38
DN25*25	DN25	25	73	18	44
DN25*32	DN25	32	75	18	45
DN32*32	DN32=41mm	32rnm	82	20	48
DN40*40	DN40=47mm	40	81	18	48
DN50*50	DN50=59mm	50	97	24	58
